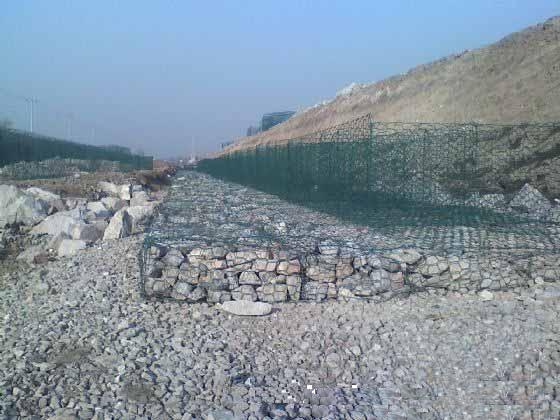

Gabion retaining wall is the earth-retaining wall structure which is piled up by gabion mesh case(the thickness is 0.5-1.0m).It is mainly used for protecting the foreshore and sub grade of the highway or railway ,governing the mud-rock flow and mountain body landslide.
Mesh size
(мм)
Wire diameter (metal wire) (мм)
Wire diameter(PVC metal wire)
/inside diameter/outside diameter (мм)
The biggest breadth is vice(m)
60*80
φ2.0-2.8
φ2.0/3.0-2.5/3.5
4300
80*100
φ2.0-3.2
φ2.0/3.0-2.8/3.8
80*120
100*120
φ2.0-3.4
100*150
120*150
φ2.0-4.0
φ2.0/3.0-3.0/4.0
Type:GBS-80 GBS-100 Specification of gabion mesh case(detailed size can be produced according to the engineering design requirement.)
