Gabion Mesh is also called big specification hexagon mesh or gabion mesh,it is made form high grade steel wire through twisting and braiding by machine .It can be
mainly used in supporting and protecting of side slope and basis pit ,mountain rock hanging mesh,green guard rail netting on side slope,railway guard rail

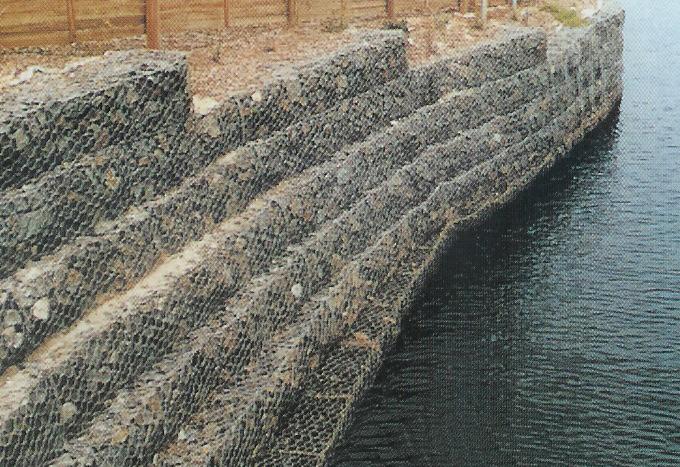

netting,higway guard rail netting.Gabion Mesh also can be worked into stone cage or stone cushion,and used in reservoir ,river or dyke for closure.
(1) Largesize galvanized hexagonal mesh is twisted by high grade mild steel wire ,Steel wire’s tensile strength should be greater than or equal to 38kg/m2,and steel
wire’s diameter should rech 2.0mm-4.0mm.The surface of steel wire usually uses zincing protection,and the thickness of protective
coating can be made according to the customer’s requirement,the quantity of protective coating can achieve up to 300g/m2.
(2) Plasticplate galvanized hexagonal mesh is twisted by galvfnized iron wire which has PVC protective coating on the surface .The PVC protective coating will be
able to increase mesh’s service life ,and through the different color choice,it fits in beautifully with its surroungding natural environment.
Meshsize
(мм) |
Wire diameter (metal wire) (мм) |
Wire diameter(PVC metal wire)
/inside diameter/outside diameter (мм) |
The biggest breadth is vice(m) |
60*80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
4300 |
80*100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
4300 |
80*120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
4300 |
100*120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
4300 |
100*150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
4300 |
120*150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
4300 |
Mattress aperture (Renault) (мм) |
Length (мм) |
width (мм) |
height (мм) |
50x70 |
3000 |
2000 |
150-200-250 |
50x70 |
4000 |
2000 |
150-200-250 |
50x70 |
5000 |
2000 |
150-200-250 |
50x70 |
6000 |
2000 |
150-200-250 |
60x80 |
3000 |
2000 |
170-230-300 |
60x80 |
4000 |
2000 |
170-230-300 |
60x80 |
5000 |
2000 |
170-230-300 |
60x80 |
6000 |
2000 |
170-230-300 |
